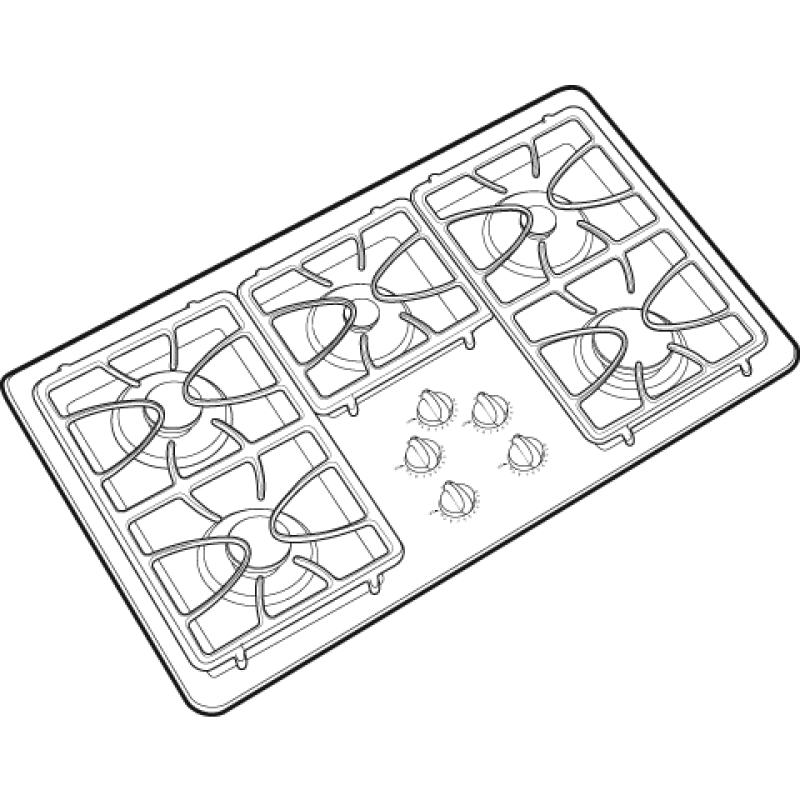

36" Built-In Gas Cooktop - JGP630WEKWW

GEGE brand logo
This product has been discontinued by the manufacture and is no longer available.

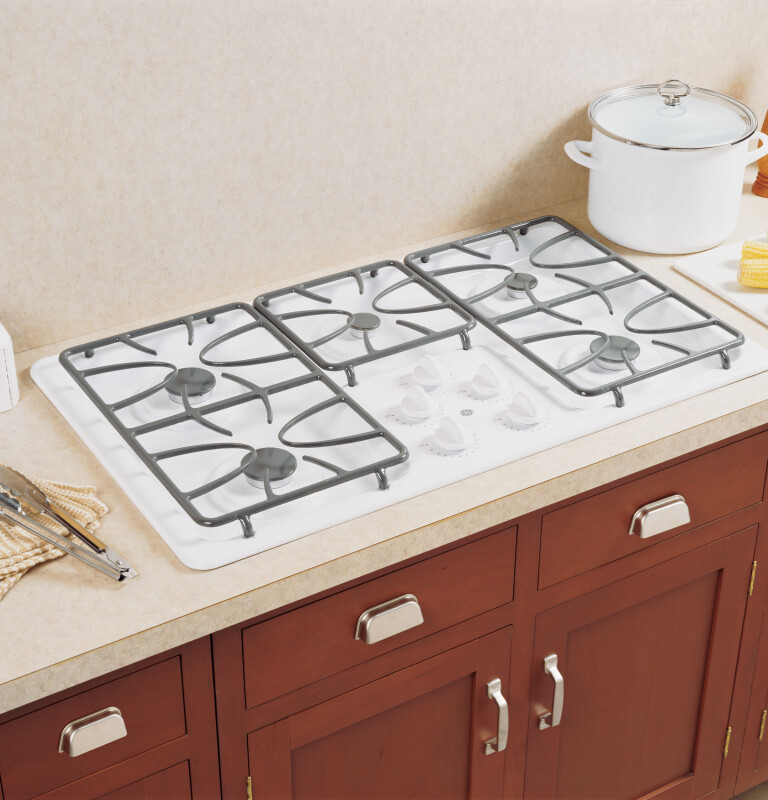

36" Built-In Gas Cooktop

Model: JGP630WEKWW

36" Built-In Gas Cooktop JGP630WEKWW36" Built-In Gas Cooktop JGP630WEKWW36" Built-In Gas Cooktop JGP630WEKWW
36" Built-In Gas Cooktop JGP630WEKWW
36" Built-In Gas Cooktop JGP630WEKWW
36" Built-In Gas Cooktop JGP630WEKWW

Color : White

36" Built-In Gas Cooktop JGP630WEKWW
White

Key Features

  • Deep-recessed cooktop

  • Sealed cooktop burners

  • All purpose burners

  • Precise Simmer burner

  • Continuous grates

  • Dishwasher-safe grates

  • Dishwasher-safe knobs

  • Medium cast grates

Description

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless.All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs.3 3/16 H x 36 W x 21 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Deep-recessed cooktop

Contains spills for quick and easy cleaning

Sealed cooktop burners

Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless

All purpose burners

All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs

Precise Simmer burner

Allows for low, even heat distribution that is ideal for delicate foods and sauces

Continuous grates

Cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily

Dishwasher-safe grates

Grates are safe for the dishwasher so cleaning is as easy as ever

Dishwasher-safe knobs

Just place the removable knobs in the dishwasher and you’re done

Medium cast grates

Medium-duty steel grates deliver reliable cooktop performance for years to come

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

WEIGHTS & DIMENSIONS

Overall Width36 in
Overall Depth21 in
Cabinet Width36 in
Approximate Shipping Weight51 lb
Net Weight46 lb
Overall Height3 3/16 in

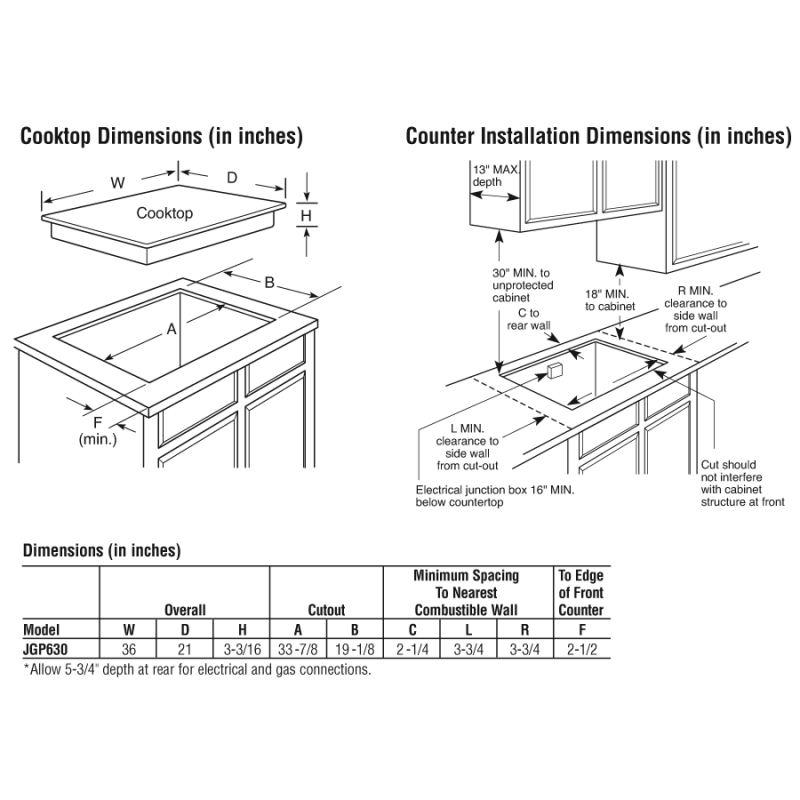

Cutout Width (in)33.875
Cutout Depth (in)19.125

Dimensions & Weight

Width36 in.
Height3.19 in.
Length21 in.
Weight46 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width41 in.
Shipping Height8.19 in.
Shipping Length26 in.
Shipping Weight86 lbs.
Total of Shipping Weight86 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.39 ft³
Dimensional Weight17.34 lbs.
Total of Cubes1.39 ft³
Total of Dimensional Weight17.34 lbs.

FEATURES

Dishwasher Safe KnobsYes
Cooktop Burner Type5 Sealed
All-Purpose Burners(2) 9,500 BTU/150F degree simmer
Fuel TypeNatural Gas
Control LocationUpfront
Ignition SystemElectronic
Cooktop SurfaceDeep Porcelain-Enamel
High Output Burner(1) 11,000 BTU/150F degree simmer
Cooktop Burner Grate MaterialMedium Cast
Cooktop Burner Grate FeaturesDishwasher Safe
Precise Simmer Burner(2) 5,000 BTU/140F degree simmer
Cooktop Burner Grate FeaturesContinuous Grates

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(1) 10.0; (2) 9.1; (2) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas(1) 11.0; (2) 9.5; (2) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Warranty NotesFor models produced on or after January 1, 2006

ACCESSORIES

LP Conversion KitIncluded

APPEARANCE

Color AppearanceWhite on White
