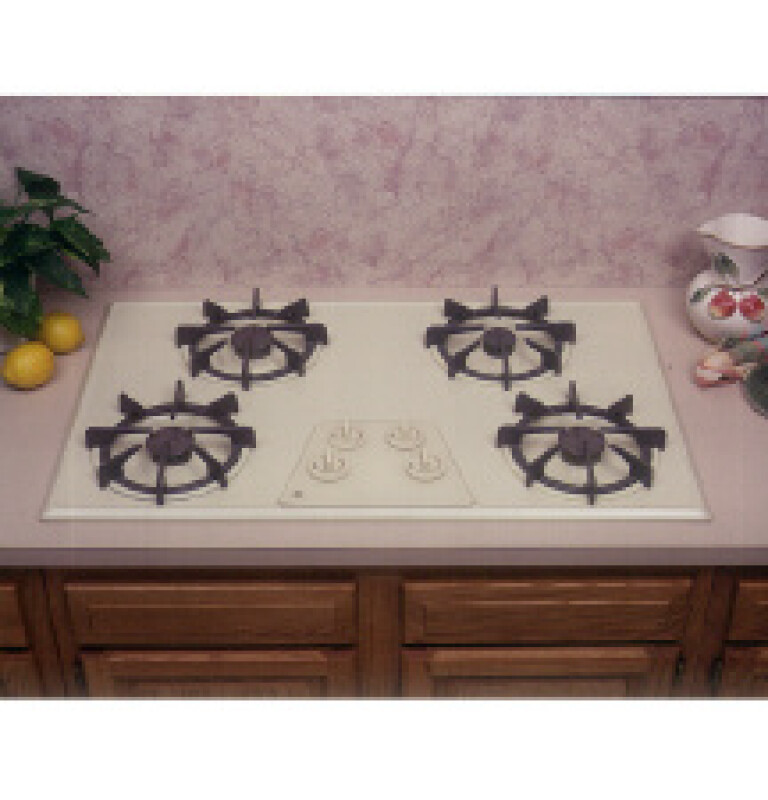

Built-In Gas Cooktop - JGP626AEVAA
Built-In Gas Cooktop
Model: JGP626AEVAA


Built-In Gas Cooktop
Model: JGP626AEVAA
Key Features
Almond-on-almond model
36" porcelain-enameled cooktop
Sealed cooktop burner design
Standard cast grates
Precise simmer burner
Electronic pilotless ignition
Up-front controls
Description
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Almond-on-almond model
36" porcelain-enameled cooktop
Sealed cooktop burner design
Standard cast grates
Precise simmer burner
Electronic pilotless ignition
Up-front controls
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Height | 3.3125 in |
| Overall Width | 35.5 in |
| Overall Depth | 21 in |
| Cutout Depth (in) | 19-1/16 |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 46 lb |
| Net Weight | 40 lb |
| Cutout Width (in) | 33-7/8 |
Dimensions & Weight
| Width | 35.5 in. |
| Height | 3.31 in. |
| Length | 21 in. |
| Weight | 40 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.5 in. |
| Shipping Height | 8.31 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 80 lbs. |
| Total of Shipping Weight | 80 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.43 ft³ |
| Dimensional Weight | 17.77 lbs. |
| Total of Cubes | 1.43 ft³ |
| Total of Dimensional Weight | 17.77 lbs. |
FEATURES
| Cooktop Burner Type | 4 Sealed |
| Valves (Degree of Turn) | 270 |
| Fuel Type | Natural Gas |
| One-Piece Drip Pans | Porcelain-Enameled |
| Control Location | Upfront |
| Ignition System | Electronic |
| Cooktop Surface | Porcelain-Enamel |
| Space Required Below Cooktop | 0.4375 in |
| Cooktop Burner Grate Material | Standard Cast |
| Precise Simmer Burner | Yes |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (3) 7.0; (1) 4.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (3) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES
| LP Conversion Kit | Included |
APPEARANCE
| Color Appearance | Almond on almond |
| Control Panel Color | Almond |
