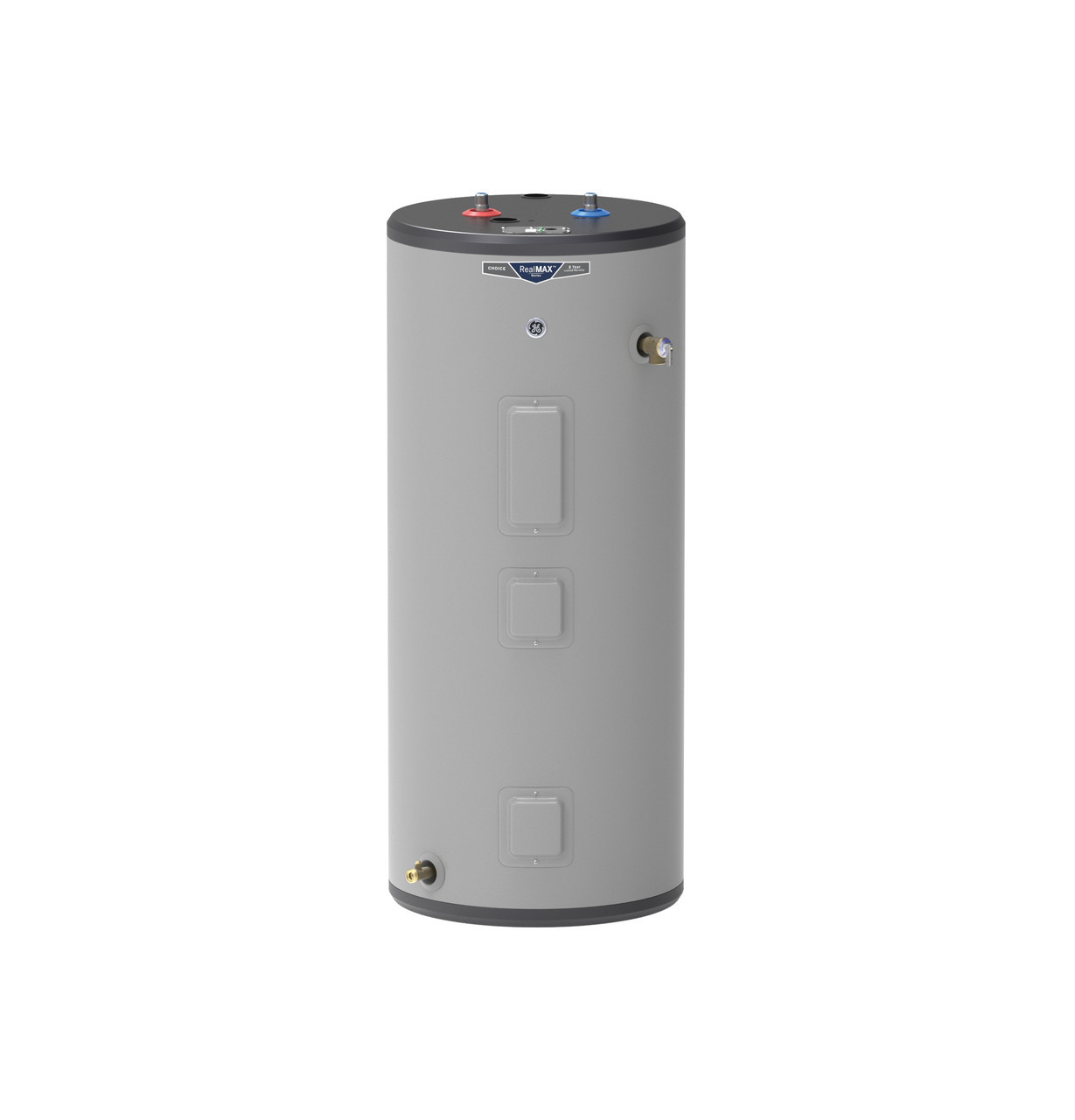

40 Gallon Short 4500W Electric Water Heater - GE40S08DAT
$539.00
Color : Gray
$539.00
Key Features
Real Capacity
Maximum Performance
Household Size
4500W Heating Elements
Inlet Tube
Easy Set Up
Anode Rod
Adjustable Thermostat
Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".
Features
Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Maximum Performance
Live comfortably with this best in class unit that delivers 63 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family of 2 to 4 persons
4500W Heating Elements
Two 4500W heating elements that require 25 Amp to operate will increase water temperature for hot water when you need it

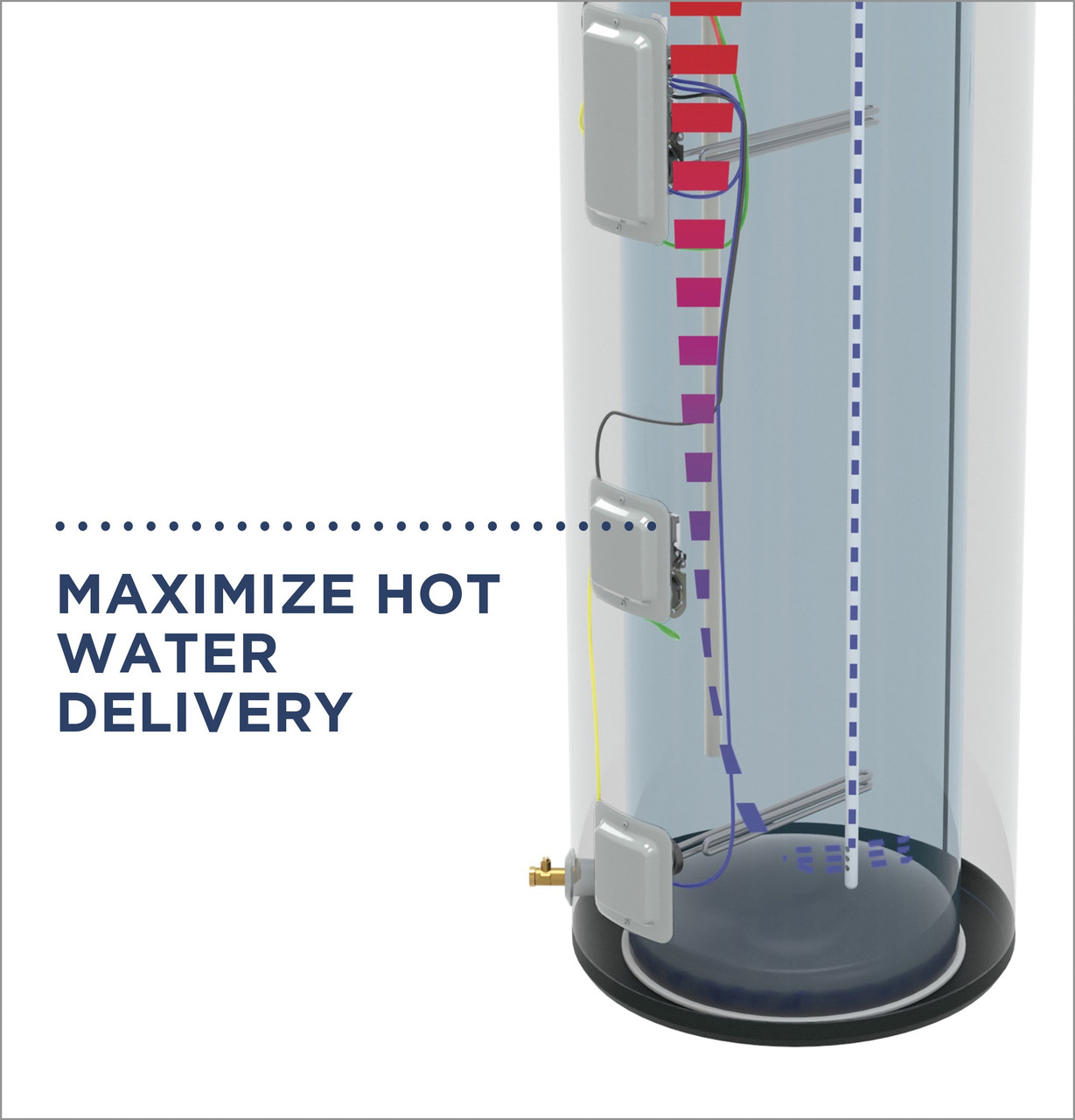

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

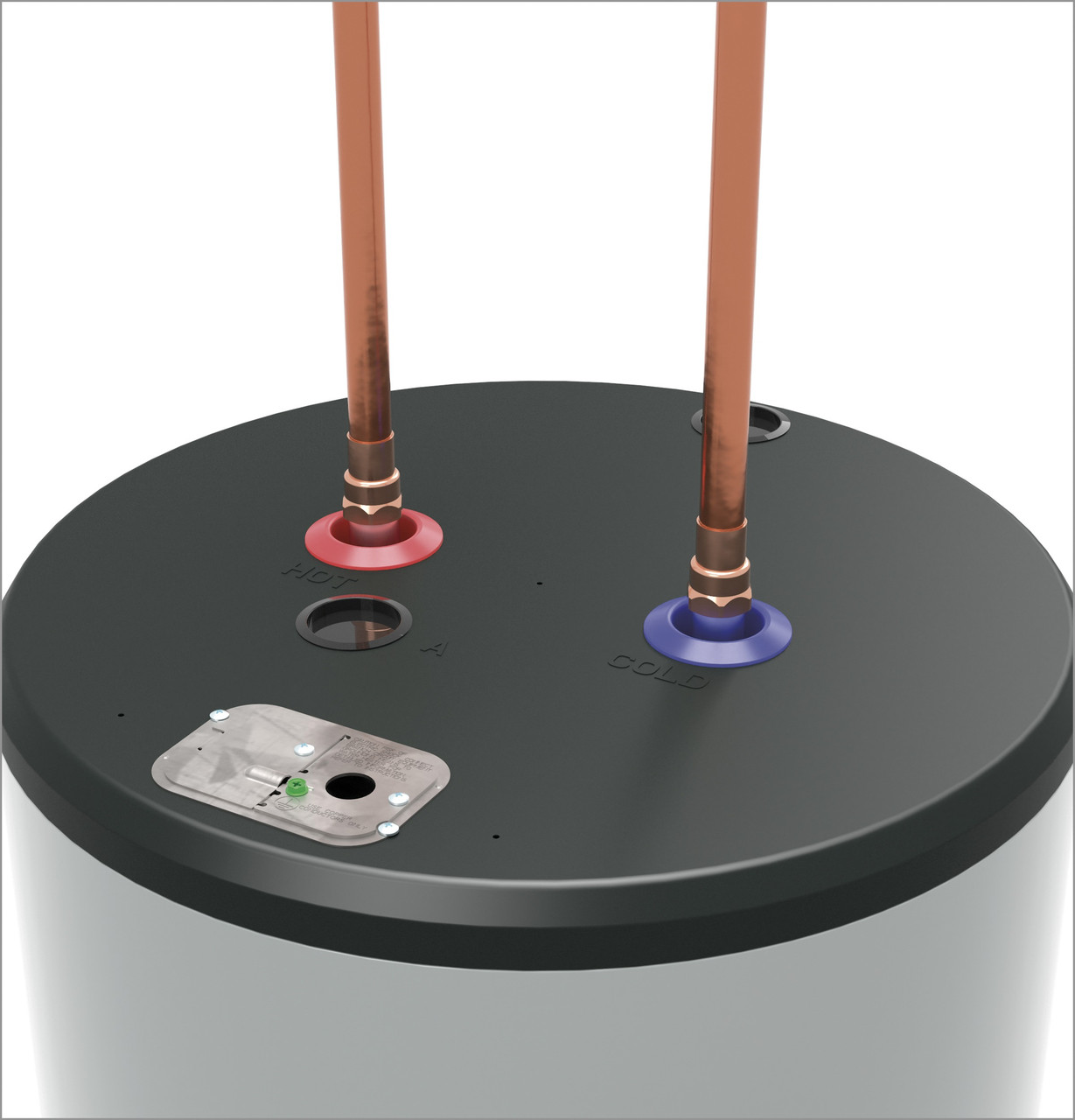

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

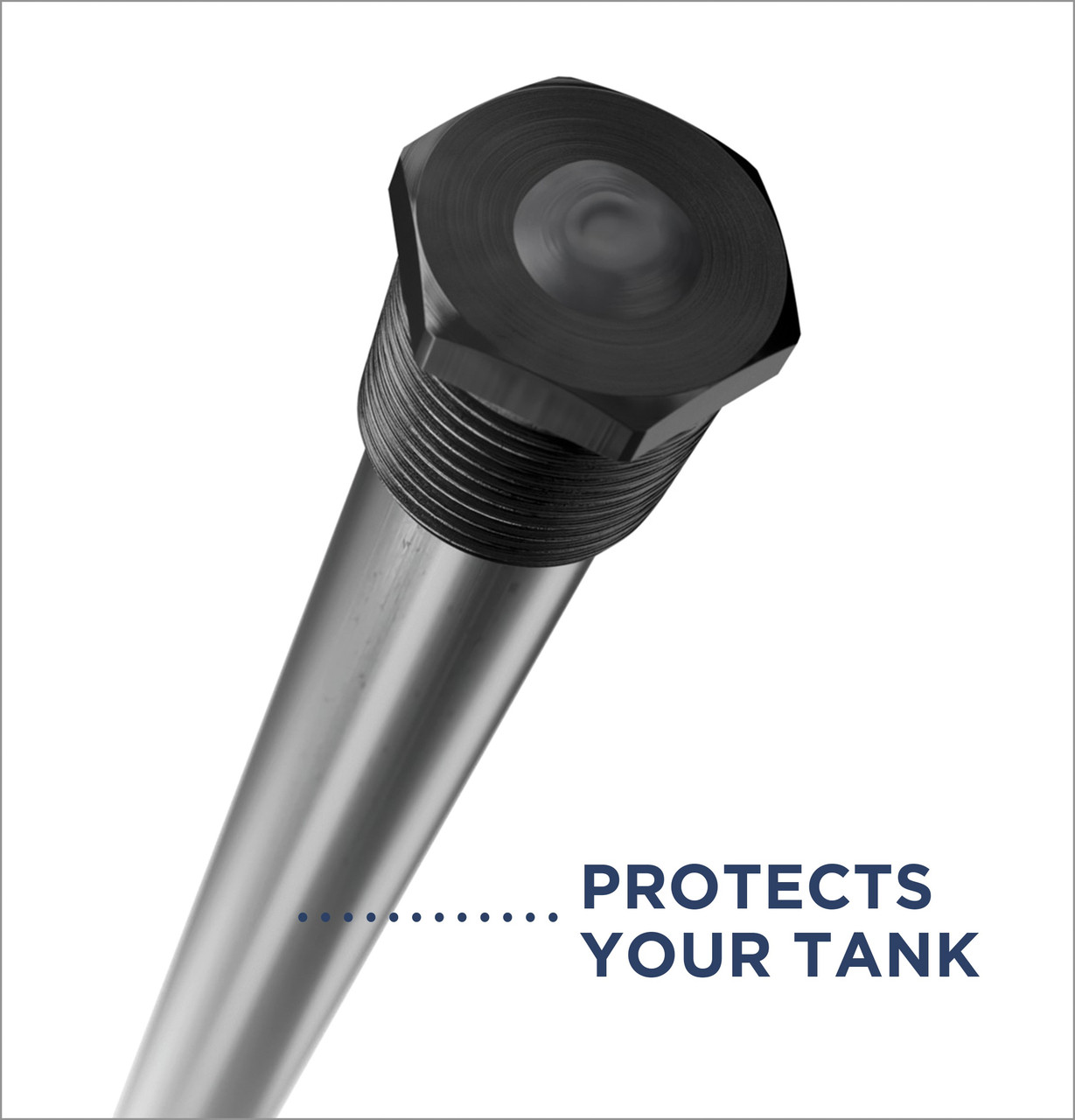

Anode Rod
Durable design offers long-lasting protection against corrosion
Adjustable Thermostat
Change temperature to your desired setting
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Certifications
California Prop 65
Specifications
Other
| Product Diameter | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 22 in. |
| Height | 52.88 in. |
| Length | 22 in. |
| Weight | 121 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 27 in. |
| Shipping Height | 57.88 in. |
| Shipping Length | 27 in. |
| Shipping Weight | 161 lbs. |
| Total of Shipping Weight | 161 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 14.81 ft³ |
| Dimensional Weight | 184.11 lbs. |
| Total of Cubes | 14.81 ft³ |
| Total of Dimensional Weight | 184.11 lbs. |
WEIGHTS & DIMENSIONS
| Overall Width | 22 in |
| Overall Height | 52.875 in |
| Product Height (to top of unit) | 51.375 in |
| Overall Depth | 22 in |
| Product Height (to top of water inlet/outlet connections) | 52.875 in |
| Approximate Shipping Weight | 133 lb |
| Net Weight | 121 lb |
| Product Diameter | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
FEATURES
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Short |
| Heating Element | Copper |
| Fuel Type | Electric |
| Configuration | Short |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 40 |
| Drain Valve Type | Plastic |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric 4500W |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
| Rated Capacity | 40 |
POWER / RATINGS
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 4500/4500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 63 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 3531 |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
CAPACITY
| Unit Capacity | 40 Gallons |
APPEARANCE
| Color Appearance | Gray |
