$1,599.00

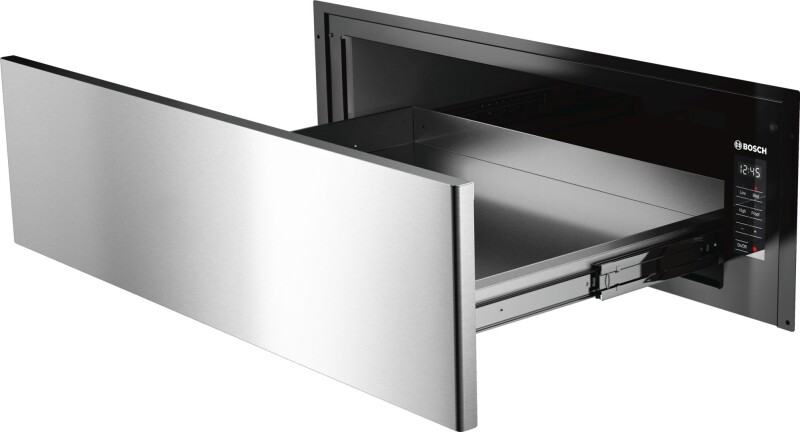

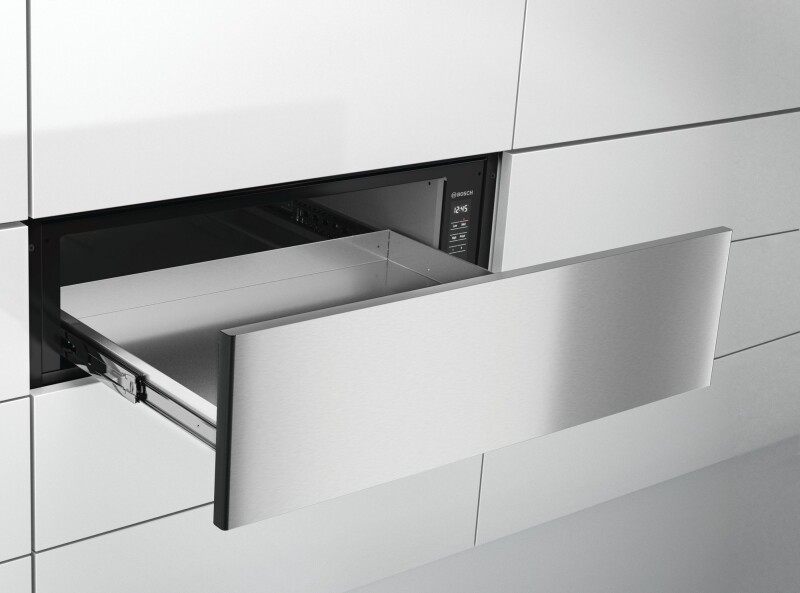

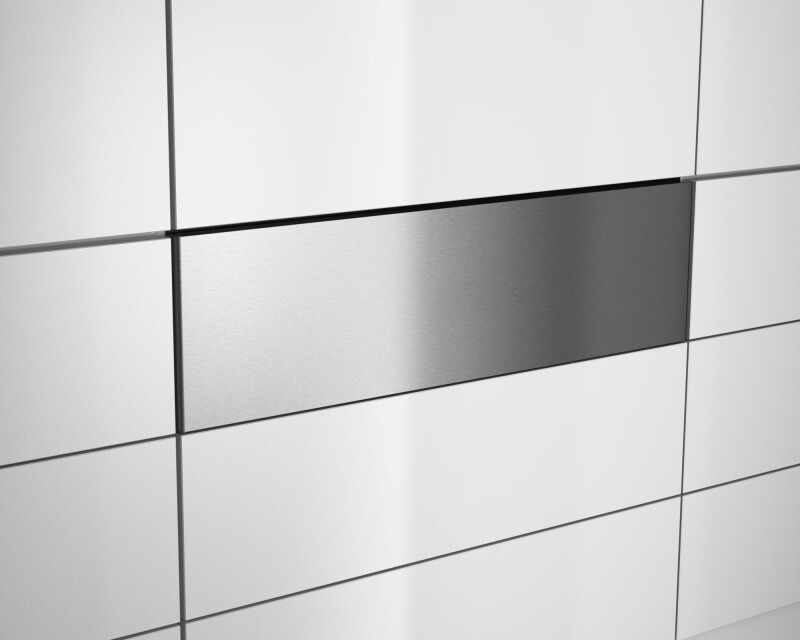

500 Series Warming Drawer 30'' - HWD5051UC

500 Series Warming Drawer 30''

Model: HWD5051UC

500 Series Warming Drawer 30'' HWD5051UC500 Series Warming Drawer 30'' HWD5051UC500 Series Warming Drawer 30'' HWD5051UC500 Series Warming Drawer 30'' HWD5051UC
500 Series Warming Drawer 30'' HWD5051UC
500 Series Warming Drawer 30'' HWD5051UC
500 Series Warming Drawer 30'' HWD5051UC
500 Series Warming Drawer 30'' HWD5051UC

360 View

360 icon

$1,599.00

rebate iconRebate Available

Color : Stainless Steel

500 Series Warming Drawer 30'' HWD5051UC

$1,599.00

Stainless Steel

Current Rebates

Bosch BMSM up to $4,000 Mail-In Rebate
Expires: July 08, 2026
Bosch Up To $100 Delivery & Install April Rebate
Expires: April 22, 2026

Key Features

  • Keep food warm before serving

Description

The Bosch HWD5051UC 30-inch Warming Drawer 500 Series is designed to match the perfectly flush fit of a Bosch Wall, Speed, or Steam Oven. The Warming Drawer features which features high, medium and low power levels and a 100°-190° temperature range to help maintain a desired temperature level. The Illuminated TouchControl controls enable simple operation, even in low light conditions. The Push-to-open design makes this drawer easy to use - the ball bearing hinges help ensure smooth openings and closings. The up to 5 hour timer makes it easy to coordinate cooking times, and the 1 hour automatic shut off function ensures everyone's safety.
Read More

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications

Features

Keep food warm before serving

You can install a warming drawer below your wall oven, speed oven, or steam oven to keep food and plates perfectly warm before serving. It offers three settings - high, medium, and low.

Specifications

General

Dinner Plate Capacity27
Dinner Plate Diameter10 1/2 "
Temperature SettingsHigh, Medium, Low
Proof Modeyes
Damped Doorno
Sabbath Modeno
Automatic Shut-Off Timerno
ADA Compliant (When Installed to ADA requirements)no

Design

Cavity Capacity2.2 Cu Ft
ColorStainless Steel

Size and Weight

Cavity Dimensions (in)7 15/16" x 23 13/16" x 20 3/16"
Cavity Capacity2.2 Cu Ft
Product Packaging Dimensions (HxWxD)14 1/2'' x 35 5/8'' x 30 1/2''
Overall Appliance Dimensions (HxWxD) (in)9 7/16" x 29 3/4'' x 23 1/2''
Required Cutout Size (HxWxD) (in)9 1/4'' x 28 1/2" x 23 1/2''
Net Weight51.000 lbs

Technical Specifications

Plug Type120V-3 prong
Power Cord Length84''
Volts120 V
Fuse protection15 A
Frequency60 Hz

Dimensions & Weight

Width29.75 in.
Height9.44 in.
Length23.5 in.
Weight51 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width34.75 in.
Shipping Height14.44 in.
Shipping Length28.5 in.
Shipping Weight91 lbs.
Total of Shipping Weight91 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement3.82 ft³
Dimensional Weight47.47 lbs.
Total of Cubes3.82 ft³
Total of Dimensional Weight47.47 lbs.
