Important Safety Precautions (Read Before Use)
Safety comes first. These machines are powerful compressors inside a small plastic shell. Ignoring basic electrical requirements can damage the unit or cause injury.
Electrical Requirements
Your ice maker needs a standard 110-120V outlet. You must use a grounded outlet. Do not use an extension cord. Extension cords often overheat because they cannot handle the consistent power draw of the compressor. If the cord feels hot to the touch, you have a problem. Move the unit closer to a wall outlet immediately.
Drainage and Placement
Never submerge the unit in water. This seems obvious, but many users try to rinse the entire machine in the sink. This destroys the electronics. Keep the unit on a dry, level surface. Uneven surfaces trigger the sensors incorrectly. This causes the machine to stop making ice even when everything else is working fine.
Quick Setup Guide (First Time Use)
You want ice immediately. I get it. But patience during the first hour protects your investment. Following these specific setup rules ensures your machine lasts for years rather than months.
Don't Plug It In Just Yet (Seriously)
I know, you want ice now. You just dragged this heavy box into your kitchen and you are ready to see it work. It is incredibly tempting to just plug it in and hit "On."
Please don't do that.
Trust me on this one. Turning it on immediately is the #1 reason these machines break in the first week.
Think about the delivery truck. It hit potholes, turned sharp corners, and maybe even tipped your box upside down. Inside your ice maker, there is a compressor filled with oil and refrigerant. Right now, that fluid is sloshed all over the place where it doesn't belong.
If you turn it on now, the compressor tries to pump air bubbles and oil instead of coolant. It’s like trying to start a car with no oil in the engine. You could burn it out instantly.
The Fix:
Just set it on the counter and walk away. Give it 2 hours (some pros say 4 to be safe) for gravity to pull all that fluid back down. Go watch a movie. When you come back, it will be safe to start.
Give It Room to Breathe
The cooling fan needs airflow. The compressor generates heat as it freezes the water. If that heat cannot escape, the ice production slows down.
- Place the unit on a flat counter.
- Leave at least 6 inches of space on all sides.
- Check the back vents. Do not push the machine flush against the backsplash.
The Initial Flush
Factory residue can linger inside the water lines. Do not eat the first batch of ice.
- Plug in the machine after the 2-hour wait.
- Fill the reservoir with fresh water.
- Run one cycle of ice making.
- Discard this ice.
- Now you are ready for normal use.

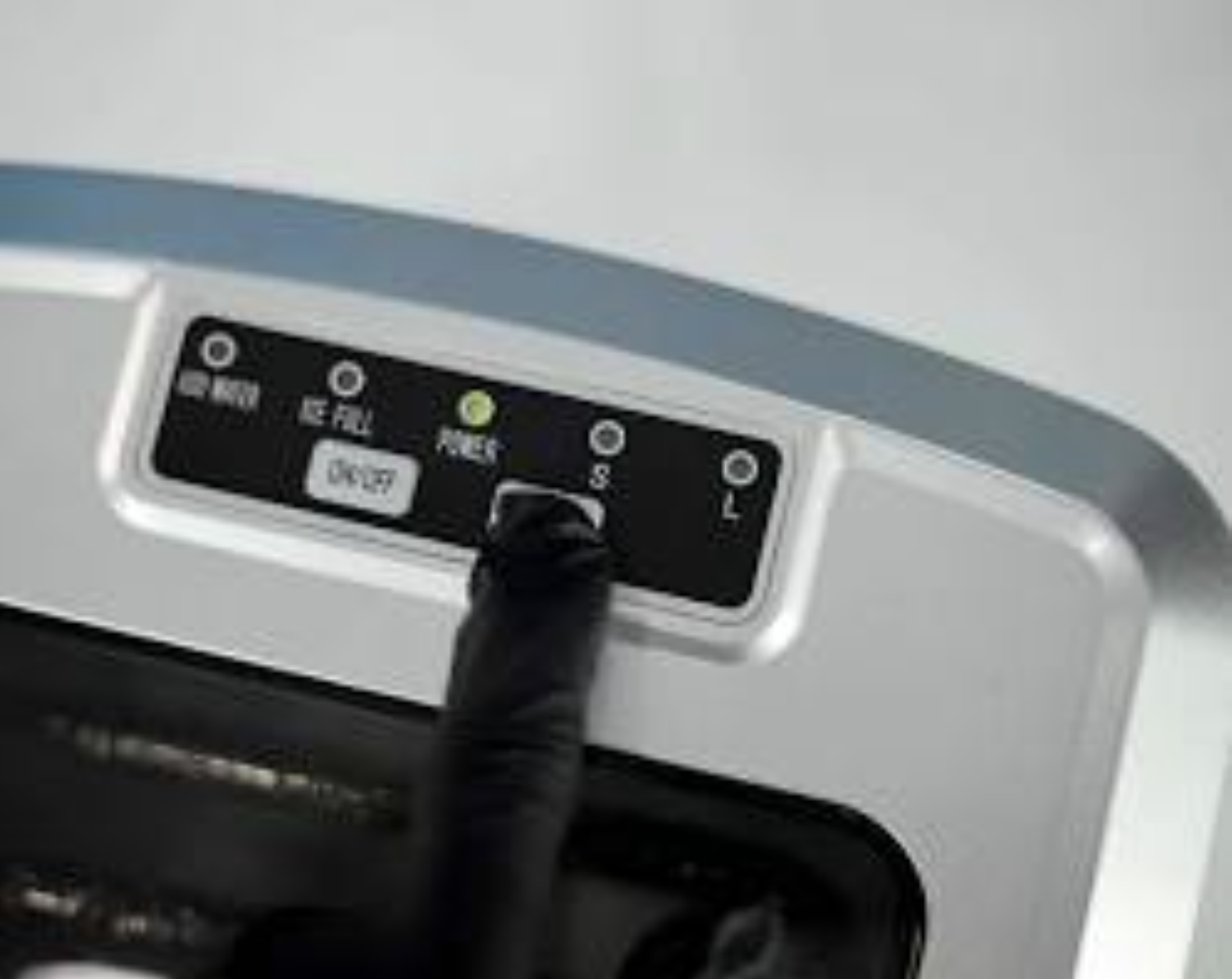

How to Use the Control Panel
The interface is simple. However, the lights communicate specific errors that you need to understand.
The Buttons
- Power (ON/OFF): Turns the unit on. On many models, holding this button initiates a reset.
- Select Size: Toggles between Small (S) and Large (L) ice bullets. Pro tip: Use the "Small" setting if you are in a rush. Small cubes freeze faster. Use "Large" if you want the ice to last longer in your drink.
- Timer/Clean: This is a dual-function button. A quick press sets a timer. A long press (5+ seconds) triggers the cleaning cycle.
Decoding the Indicator Lights
- Power Indicator: A solid green light means the machine is making ice. A blinking green light means it is in standby mode.
- Ice Full: The infrared sensor beam is blocked. The basket is full. Remove ice to resume production.
- Add Water: The reservoir is empty. The water pump cannot pull any more liquid.
Frigidaire Ice Maker Cleaning Instructions (Crucial Step)
Mold and mineral buildup are the enemies of countertop ice makers. If you see black specks in your ice or taste something funky, you waited too long. You need to know how to clean frigidaire nugget ice maker models and standard bullet models regularly.
Perform a deep clean once a month.
The Solution Ratio
Do not use harsh chemicals or bleach. They leave a chemical residue that ruins the taste of your ice.
- Mixture: Use a 1:10 ratio of white vinegar to warm water.
- Example: Mix 1 cup of white vinegar with 10 cups of water.
How to Trigger Self-Clean Mode
Most modern Frigidaire units have an automatic cleaning cycle. This flushes the internal lines that you cannot reach by hand.
- Empty the Unit: Remove the ice basket and drain any water using the plug at the bottom.
- Add Solution: Pour your vinegar and water mixture into the reservoir up to the "MAX" line.
- Activate Mode: With the unit plugged in (but in standby mode), press and hold the "Timer/Clean" button for at least 5 seconds.
- Watch the Cycle: The cleaning indicator will flash. The pump will circulate the vinegar mixture through the evaporator rods without freezing it. This usually takes 15 to 20 minutes.
- Drain: Once the cycle stops, unplug the drain cap at the bottom. Let the dirty vinegar water flow into a sink or bucket.
- Rinse: This is vital. Fill the tank with fresh water and run the cleaning cycle again. This flushes out the vinegar taste.
- Dry: Wipe the interior with a soft, clean cloth.
If your model does not have a dedicated "Clean" button, simply run the machine on the ice-making setting with the vinegar solution. Just be sure to throw away the vinegar ice cubes immediately.
Troubleshooting & Reset Instructions
Technology acts up. Sometimes the sensors get confused. If your machine stops working, try these fixes before calling support.
How to Reset the Machine
There is no dedicated frigidaire ice maker reset button on the exterior. You must perform a manual reset.
Method 1: The Hard Reset
This clears the digital memory board.
- Unplug the machine from the wall.
- Wait for 15 to 20 minutes.
- Plug it back in.
- Press the Power button.
Method 2: The Soft Reset
- Press and hold the Power button for 10 seconds.
- The lights on the display may flash.
- Release the button and wait for the machine to return to standby.
"Add Water" Light is On, But It's Full
This is a very common issue. The frigidaire ice maker add water light on but full error usually happens for two reasons.
- Air Lock: An air bubble is trapped in the water intake line.
- Dirty Sensor: The water level sensor is often a small metal prong or float. If it gets coated in mineral scale (white crust), it cannot detect the water.
Ice is Wet or Melting Too Fast
The machine is not a freezer. It is an ice maker. It is not designed to keep ice frozen indefinitely. However, if the ice comes out wet or melts instantly, check these factors.
- Ambient Temperature: Is the room too hot? If the temperature is above 80°F (26°C), the machine struggles to freeze water effectively. Move it to a cooler spot.
- Fan Blockage: Check the side vents. If dust clogs the fan, the compressor overheats. Vacuum the vents to restore airflow.
Where to Find the Manual
If you need specific part numbers, you might still want the official document. Searching for frigidaire ice maker manual pdf often leads to spam sites. Always check the manufacturer's support page or look for the model number (e.g., EFIC235 or EFIC206) on the sticker on the back of your unit.
FAQ
Can I leave my Frigidaire ice maker on 24/7?
Yes, you can. However, it is not energy efficient. The machine is insulated, but the ice will eventually melt and recycle back into the water reservoir. It is better to make a batch, bag it, and store it in your main freezer.
Why does my ice taste like plastic?
This is common with brand-new units. The plastic components are off-gassing. Run the cleaning cycle described above with a stronger vinegar solution (1:5 ratio). Afterward, run two cycles with fresh water. Lemon juice added to the water can also help neutralize the odor.
How long does the Frigidaire take to make ice?
The first batch usually takes longer because the unit is cooling down. Expect the first cycle to take 10 to 15 minutes. After that, it should produce a new batch of bullets every 7 to 9 minutes.
Why is my ice maker noisy?
A low hum is normal. This is the compressor working. If you hear grinding, the water pump might be failing. If you hear rattling, the machine is likely not sitting on a level surface.
