800 Series Dishwasher 24'' - SGV78B53UC

This product has been discontinued by the manufacture and is no longer available.

800 Series Dishwasher 24''

Model: SGV78B53UC

800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC800 Series Dishwasher 24'' SGV78B53UC
800 Series Dishwasher 24'' SGV78B53UC
800 Series Dishwasher 24'' SGV78B53UC
800 Series Dishwasher 24'' SGV78B53UC
800 Series Dishwasher 24'' SGV78B53UC
800 Series Dishwasher 24'' SGV78B53UC
+16more

360 View

360 icon

Color : Panel Ready

product image
Panel Ready

Key Features

  • Added leak protection with 24/7 AquaStop Plus

  • Know when your dishwasher is running with InfoLight

  • A Flexible Silverware Basket for storing various utensils on the bottom rack

  • 24h Delay Start Timer for a later start time

  • Custom Panel Dishwashers

  • The ultimate dry with CrystalDry

  • A smarter clean with PrecisionWash

  • 42 dBA -- the quietest dishwasher brand in the U.S.*

Read More

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications

Features

Added leak protection with 24/7 AquaStop Plus

With the advanced leak prevention and containment systems of AquaStop, AquaStop® Plus features an additional hose surrounding the water inlet hose for added protection.

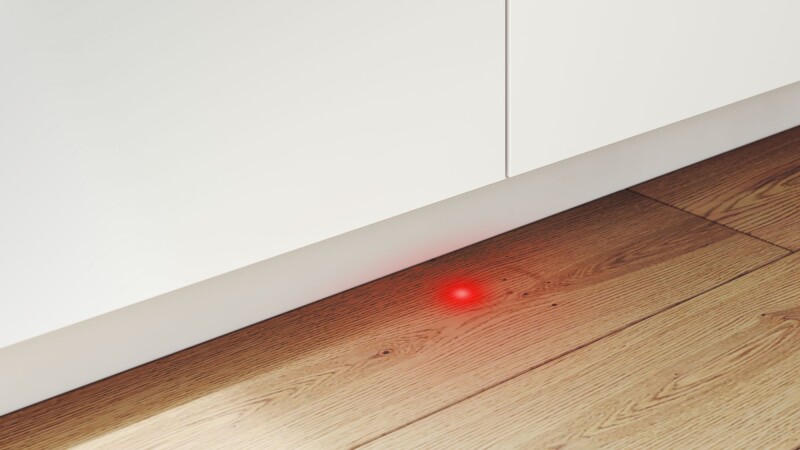

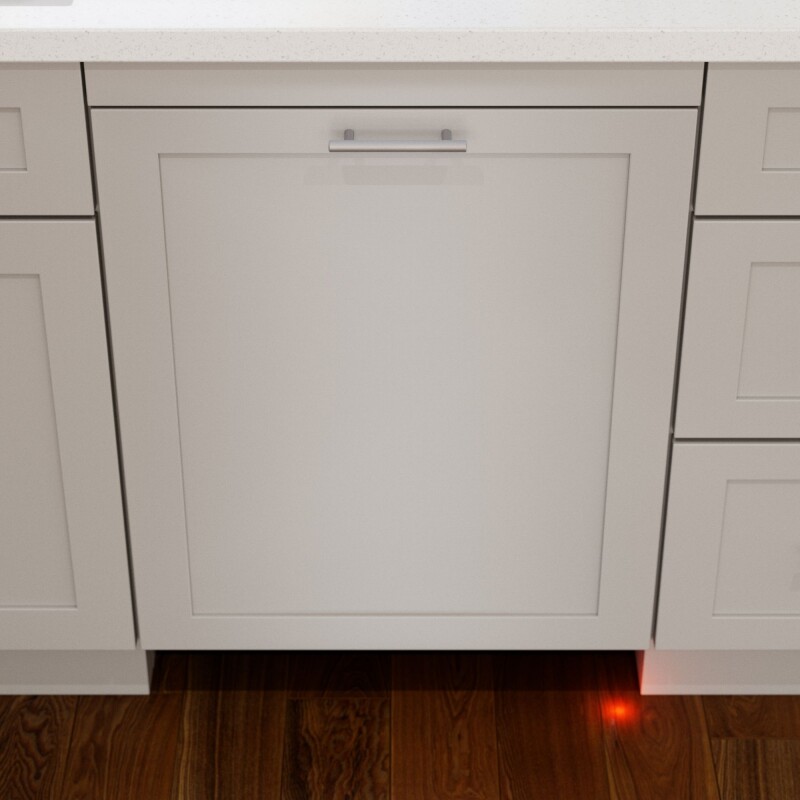

Know when your dishwasher is running with InfoLight

Based on our legendary sound reduction technology, our dishwashers are so quiet, we provide an InfoLight that projects a red light onto the floor (or a white light in the pocket handle on select models) to signal that a cycle is running. It turns off once the dishes are done.

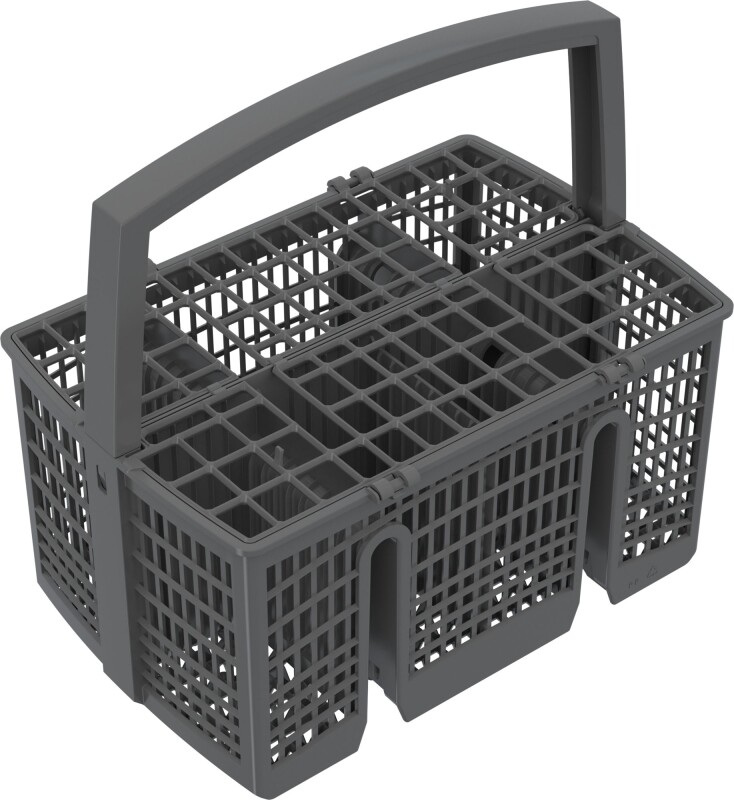

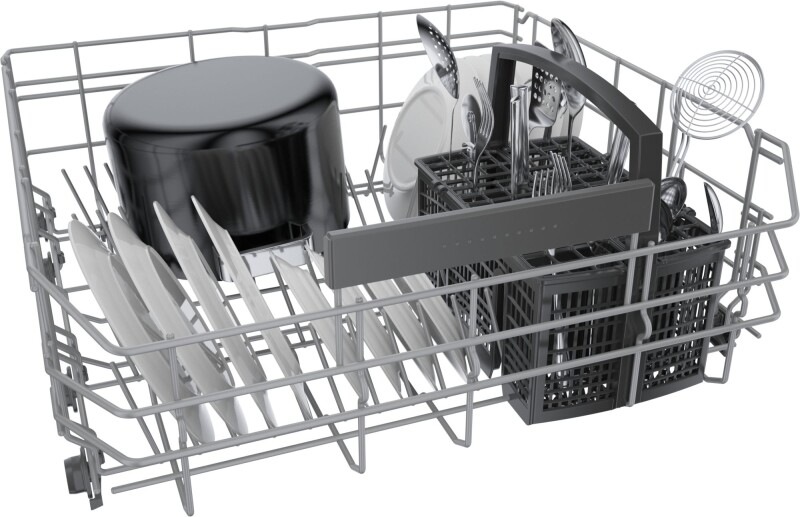

A Flexible Silverware Basket for storing various utensils on the bottom rack

The Flexible Silverware Basket provides a flexible solution to store and clean your silverware on the bottom rack.

24h Delay Start Timer for a later start time

Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.

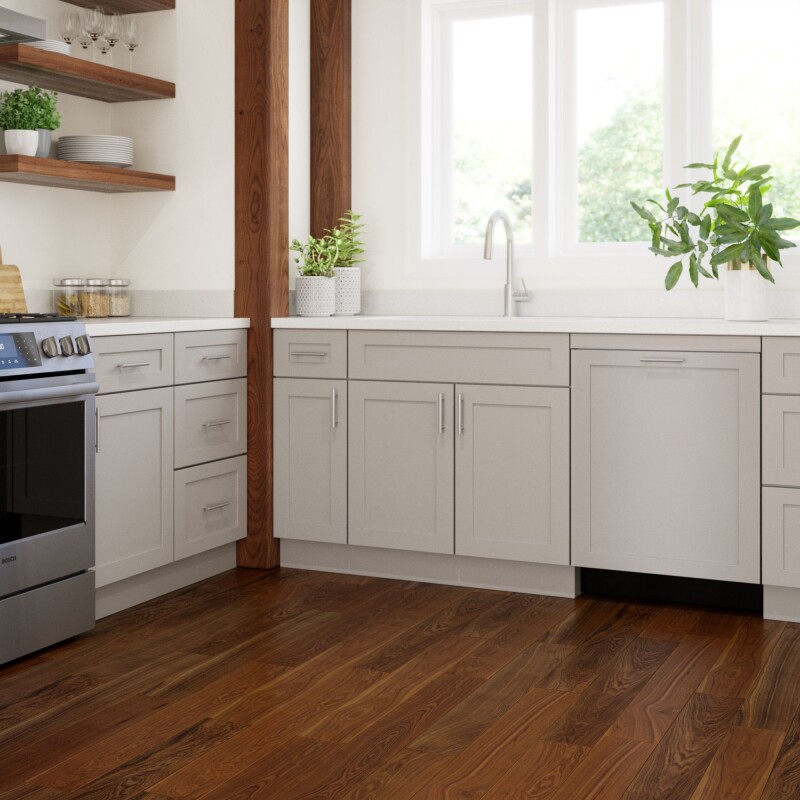

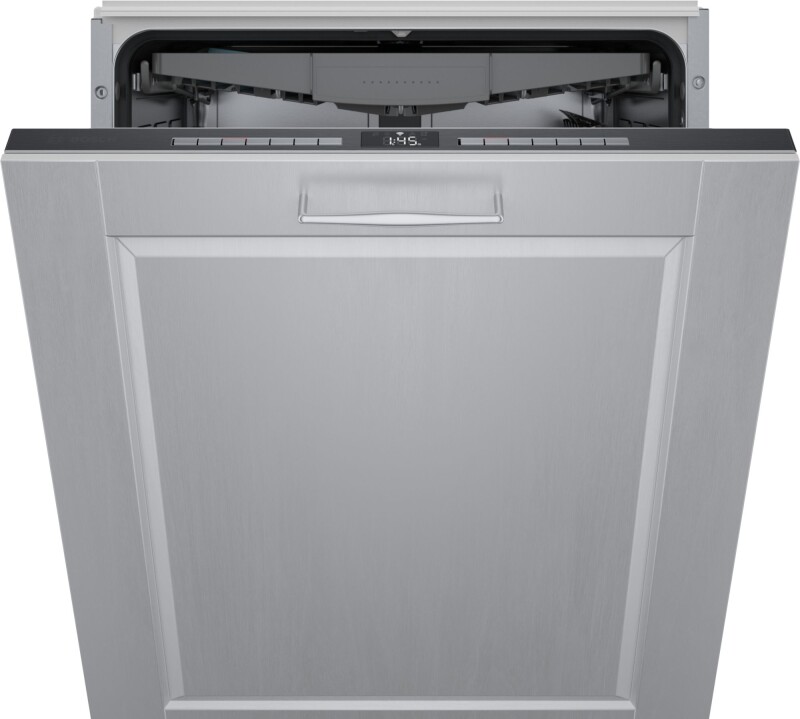

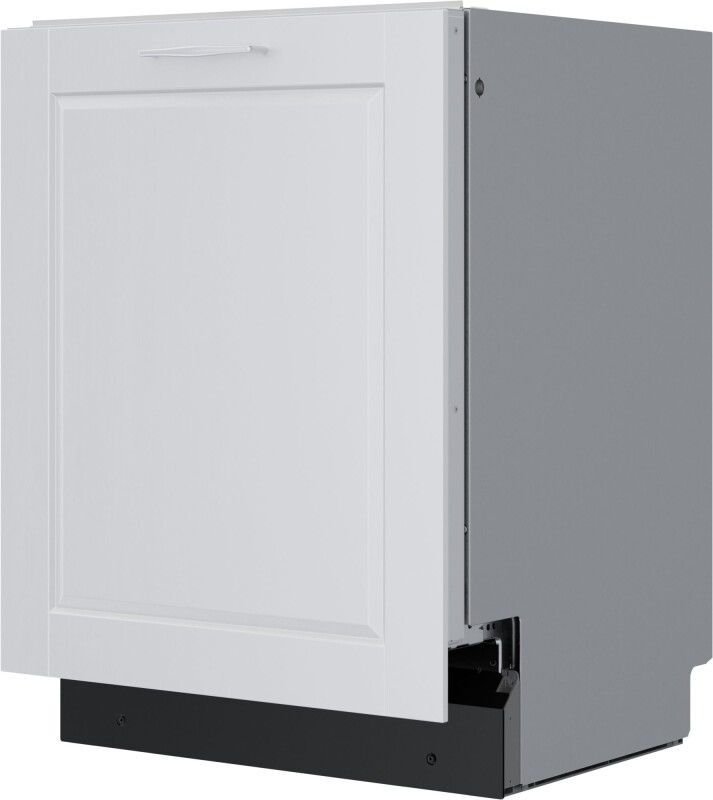

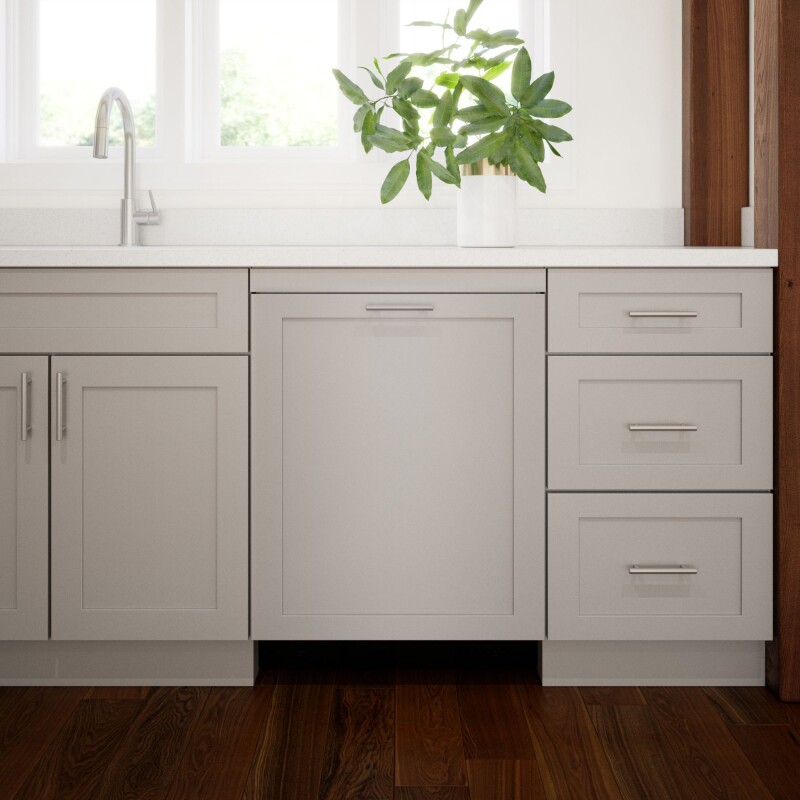

Custom Panel Dishwashers

Seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry. The unique design allows for a fully flush install for a refined level of sophistication. For more information, select 'Installation Instructions' in the manuals and documents section.

The ultimate dry with CrystalDry

At Bosch, we believe dishes should receive a powerful clean and then be thoroughly dry. Patented CrystalDry technology transforms moisture into heat up to 176°F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type.

A smarter clean with PrecisionWash

With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you.

42 dBA -- the quietest dishwasher brand in the U.S.*

A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24"" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021.

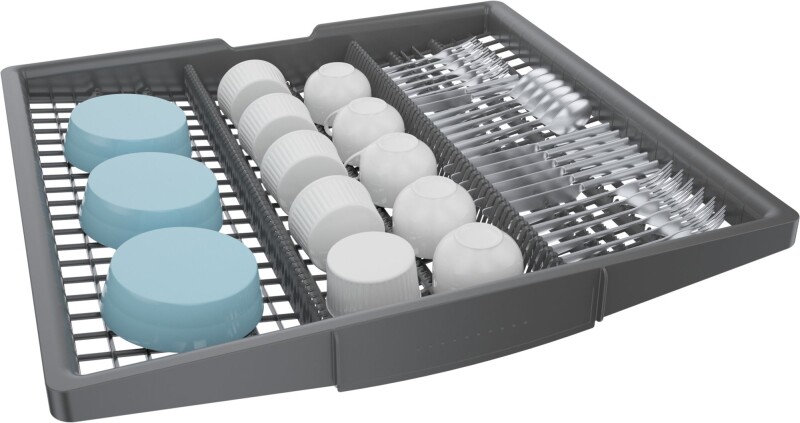

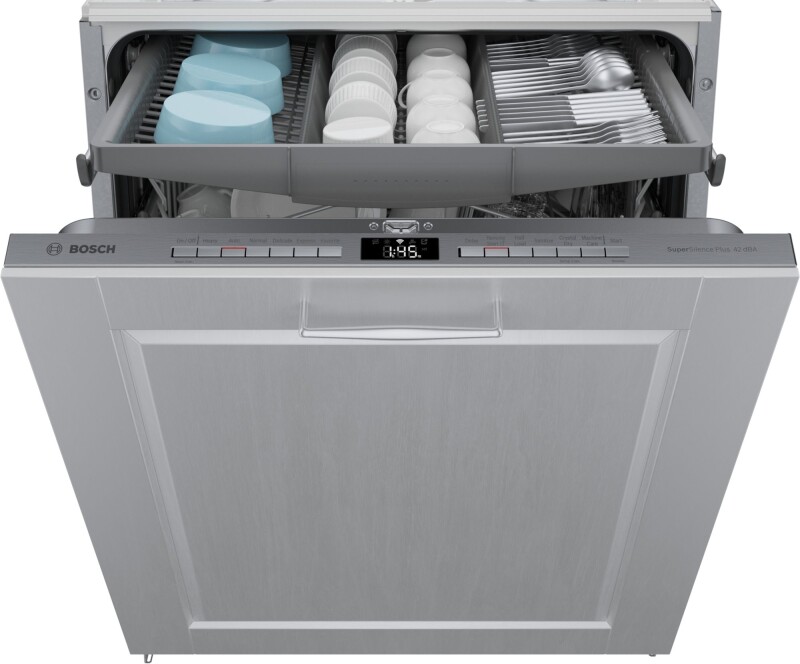

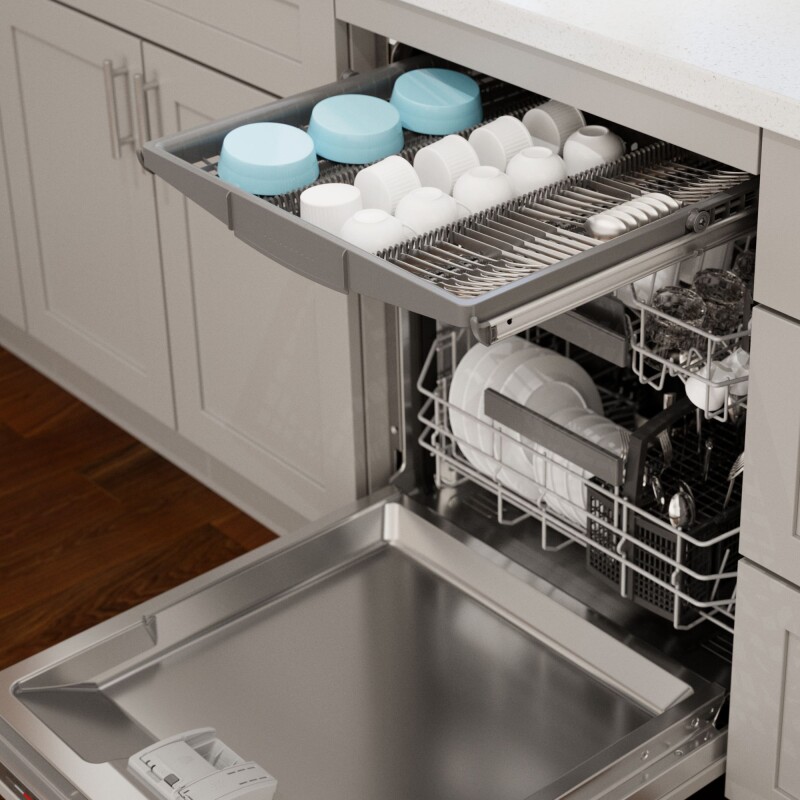

Loading flexibility with a 3rd rack dishwasher

The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that’s difficult to fit in a traditional dishwasher, while its V shape leaves room below both sides for taller items like stemware in the middle rack.

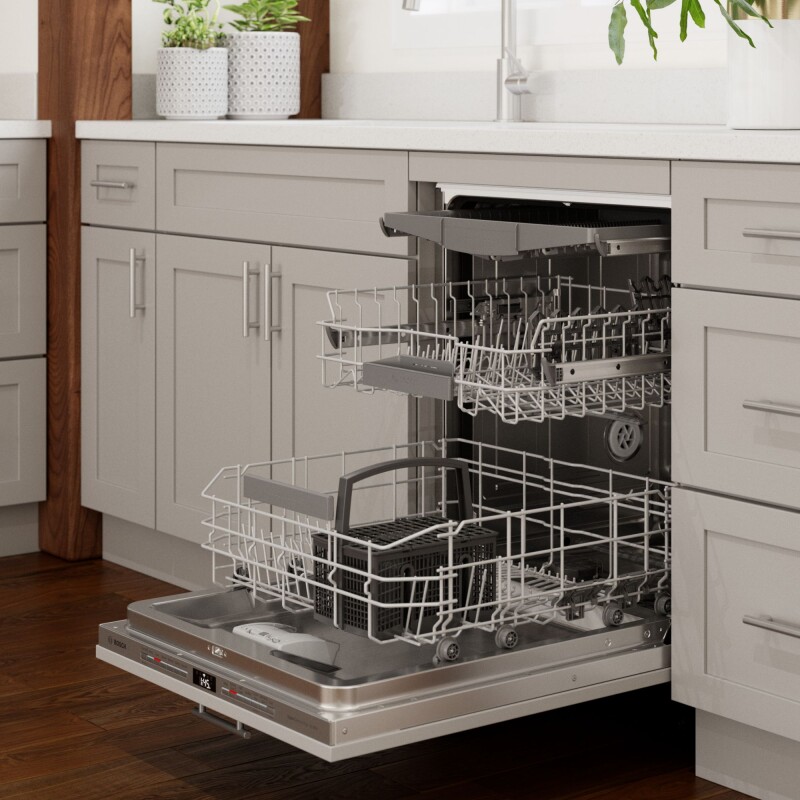

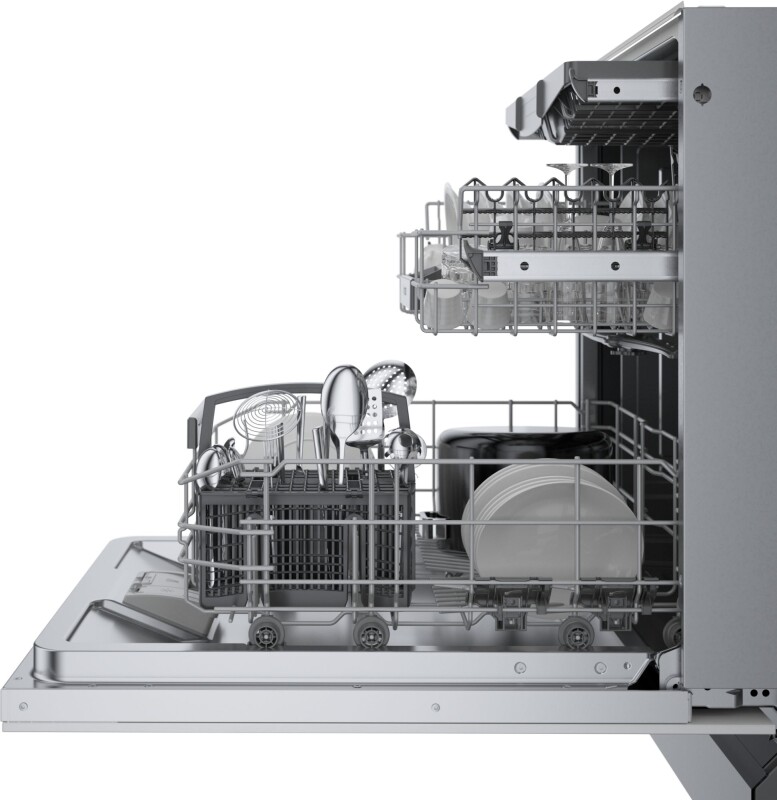

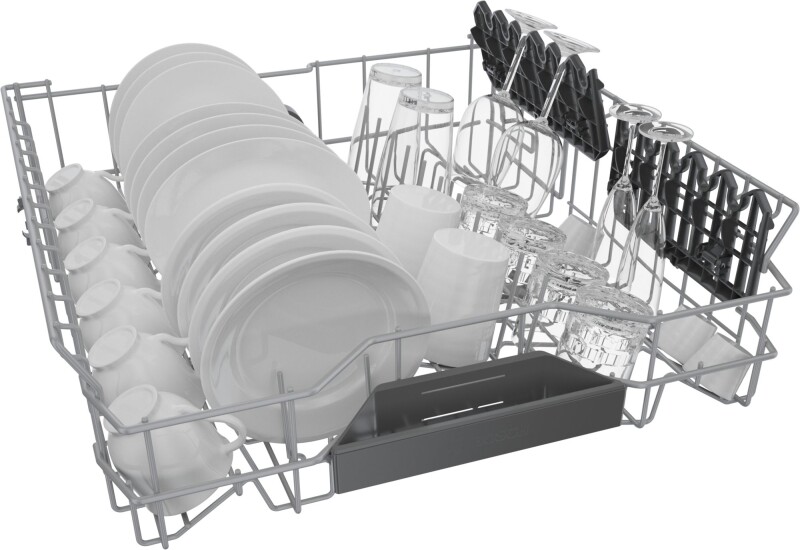

Fit in tall items with RackMatic

RackMatic easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.

Custom Panel Dishwashers: seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry.Close

Seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry. The unique design allows for a fully flush install for a refined level of sophistication. For more information, select 'Installation Instructions' in the manuals and documents section.

CrystalDry: transforms moisture into heat up to 176°F to give dishes, even plastics, the ultimate dry.Close

PrecisionWash: uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.Close

Extremely Quiet Operation at 42 dBA: creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*Close

Standard 3rd Rack: provides a convenient top rack for your utensils, giving the other racks more space for dishes.Close

The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that’s difficult to fit in a traditional dishwasher, while its V shape leaves room below both sides for taller items like stemware in the middle rack.

Custom Panel Dishwashers:

seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry.

CrystalDry:

transforms moisture into heat up to 176°F to give dishes, even plastics, the ultimate dry.

PrecisionWash:

uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.

Extremely Quiet Operation at 42 dBA:

creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*

Standard 3rd Rack:

provides a convenient top rack for your utensils, giving the other racks more space for dishes.

CrystalDry™:

transforms moisture into heat up to 176°F to give dishes, even plastics, the ultimate dry.

PrecisionWash®:

uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.

Specifications

Connectivity

Home Connect™yes
Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.2.0 W
Time auto-standby/network2.0 min
Home Connect FeaturesRemote Monitoring and Control
Home Connect™yes

Programmes

Status IndicatorEnd of program audible, Time remaining indic. internal, Water inlet
Program 3Normal
List of ProgramsFavorite, Heavy, Normal, Quick Wash 45°C
Program 1Heavy
Program 5Quick Wash 45°C
Program 2Auto
Program 6Favorite
Reference programEco
Number of different wash temperatures8
Temperature program 1151-160 °F
Temperature program 2127-140 °F
Temperature program 3113-136 °F
Temperature program 4113-122 °F
Temperature program 5113 °F

Safety

ChildLockNo
AquaStopyes

Consumption values

Glass protectionYes
Water consumption program 14.9-6.4 gal
Water consumption program 23.4-5.4 gal
Water consumption program 32.6-5.6 gal
Water consumption program 42.5-3.9 gal
Water consumption program 52.7 gal
Water consumption program 61.2 gal
Maximum temperature for water intake (°C)60 °C

Connection

Watts1,440 W
Power Cord Length67''
Fuse protection12 A
Length inlet hose165 cm
Plug TypeNema5-15P

Warranty

Parts1 Year
Labor1 Year

Comfort and Convenience

Status IndicatorEnd of program audible, Time remaining indic. internal, Water inlet
Open Door Assistno
TimeLight®no
InfoLight®Red
Multi-color Star Glowno
emotionLightno
sideLightno
TimeLight®no
InfoLight®Red

Cleaning Technology

Drying SystemCrystalDry®, PureDry®
Precise Glass Protectionno
Eco silence driveyes
Aquasensoryes
Water management systemno
Detergent detectionno
Water Softeneryes
NSF® Certified Sanitize Optionno

Other

ENERGY STAR® certifiedno
Leak Protectionyes

Dimensions & Weight

Width23.56 in.
Height32.06 in.
Length21.63 in.
Weight103 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width28.56 in.
Shipping Height37.06 in.
Shipping Length26.63 in.
Shipping Weight143 lbs.
Total of Shipping Weight143 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement9.45 ft³
Dimensional Weight117.53 lbs.
Total of Cubes9.45 ft³
Total of Dimensional Weight117.53 lbs.
