Built-In Dishwasher - PDW7300NBB

This product has been discontinued by the manufacture and is no longer available.

Built-In Dishwasher

Model: PDW7300NBB

Built-In Dishwasher PDW7300NBBBuilt-In Dishwasher PDW7300NBBBuilt-In Dishwasher PDW7300NBBBuilt-In Dishwasher PDW7300NBB
Built-In Dishwasher PDW7300NBB
Built-In Dishwasher PDW7300NBB
Built-In Dishwasher PDW7300NBB
Built-In Dishwasher PDW7300NBB

Color : Black

Built-In Dishwasher PDW7300NBB
Black

Key Features

  • Meets 2007 ENERGY STAR criteria

  • One-piece color wrap contour door

  • Giant tub with maximum capacity racking

  • Four-position adjustable upper rack

  • Countdown display with 1-9 hour Delay Start

  • 6-level towerless wash system with Clean Sensor

  • 2 sets fold-down tines with 1 multi-position in upper rack

  • Super capacity 3-piece silverware basket

Read More

Description

Provides a rich contemporary look in any kitchen.Holds tall and oversized items; washes 16 place settings at once.34 H x 24 W x 25 1/4 D

Available from Mr. Appliance, serving customers throughout "Georgia and Central Florida".

Features
Specifications
Certifications

Features

Meets 2007 ENERGY STAR criteria

Can reduce utility bill by using less water to get dishes clean

One-piece color wrap contour door

Provides a rich contemporary look in any kitchen

Giant tub with maximum capacity racking

Holds tall and oversized items; washes 16 place settings at once

Four-position adjustable upper rack

Moves up, down and diagonally for maximum loading flexibility

Countdown display with 1-9 hour Delay Start

Signals remaining cycle time and makes it easier than ever to wash dishes at any hour, or washing dishes even when the family is asleep

6-level towerless wash system with Clean Sensor

Scrubs dishes clean with three full-sized wash arms, six levels of wash action and a sensor that continually monitors and adjusts the wash cycle for a superior clean

2 sets fold-down tines with 1 multi-position in upper rack

Provide additional flexibility for loading odd shaped items

Super capacity 3-piece silverware basket

Holds more items to clean large loads at once and separates for the ultimate in loading flexibility

Four utility shelves with stem safe in upper rack

Four full-length shelves flip down, providing an extra level for stacking items like teacups or odd-shaped utensils; and hold wine glasses securely in place

QuietPower 4 sound package

Adds extra insulation to keep the kitchen extra quiet

Meets 2007 ENERGY STARĀ® criteria

Can reduce utility bill by using less water to get dishes clean

QuietPowerā„¢ 4 sound package

Adds extra insulation to keep the kitchen extra quiet

Certifications

California Prop 65 certification

California Prop 65

ENERGY STARĀ® Qualified certification

ENERGY STARĀ® Qualified

Specifications

Warranty

Parts1 Year
Labor1 Year

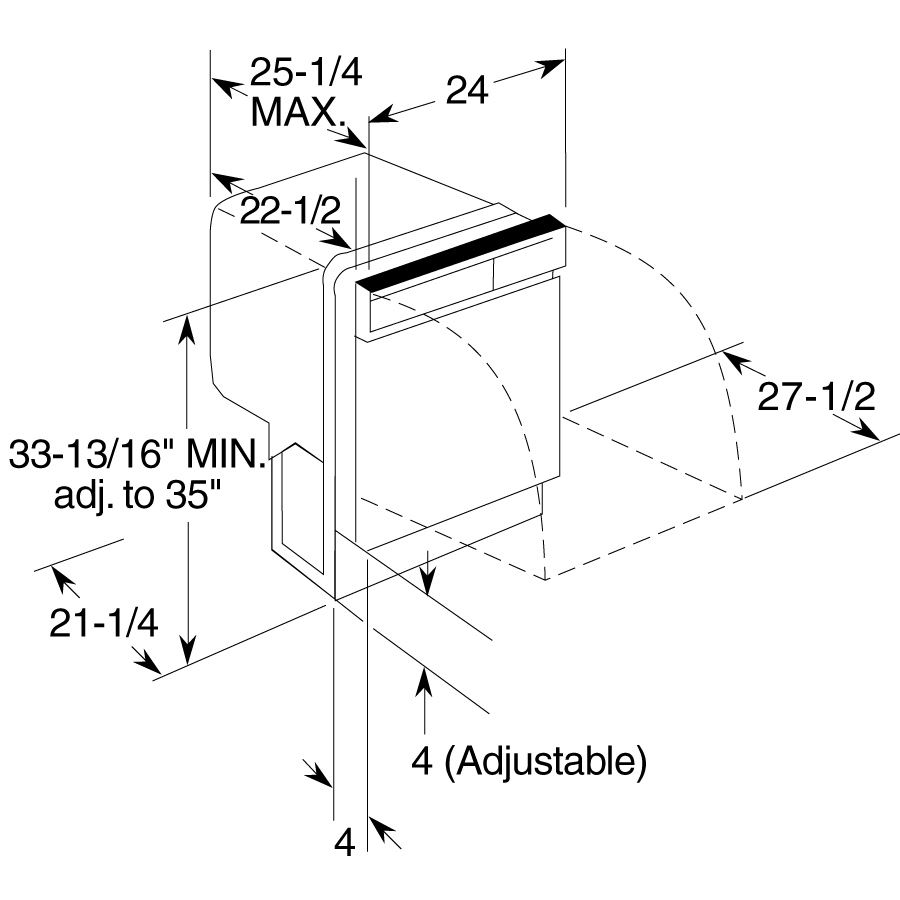

WEIGHTS & DIMENSIONS

Overall Height34 in
Cabinet Width24 in
Overall Width24 in
Net Weight95 lb
Approximate Shipping Weight100 lb
Height w/Legs Extended - Maximum Height35 in
Overall Depth25 1/4 in

FEATURES

SensorClean Sensor
Lower RackTowerless
Tub TypeTall Tub
Leveling SystemLeveling Legs
Water Filtration SystemSelf-Cleaning Triple Filtration
Rack FeaturesStem Safe
Upper RackDeep Tiered
Dishwasher OptionsPreWash
LatchSqueeze
Wash ArmsUpper
Number of OptionsVariable
StyleBuilt-In
Dishwasher Control FeaturesStart/Reset Pad
Wash System FeaturesPiranhaā„¢ Hard Food Disposer
Dishwasher CyclesRinse Only
Number of CyclesVariable
Tub and Door LinerPlastic
DispenserRinse Aid with Indicator and Adjustment
Exterior StyleTraditional
Dishwasher Drying FeaturesMulti-Wattage Calrod Heater

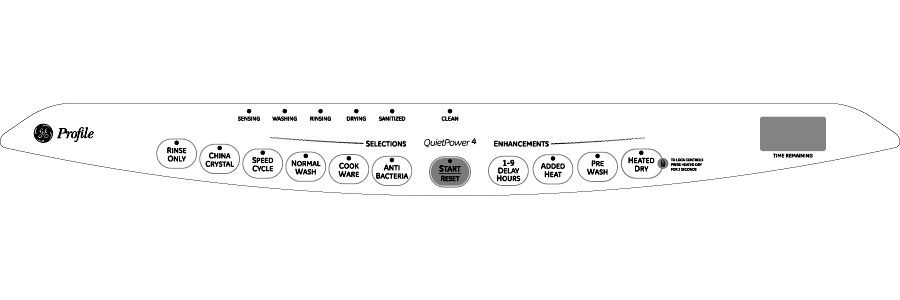

Control TypeElectronic
Racking SystemNylon Towerless
Control Type11 Touchpads
Dishwasher Control Features3 Digit Countdown Display with Status Lights
Dishwasher Control FeaturesLast Cycle Memory
Dishwasher Control FeaturesControl Lock
Dishwasher CyclesNormal Wash
Dishwasher CyclesCookware
Dishwasher CyclesAnti-Bacteria (NSF Certified)
Dishwasher CyclesChina/Crystal
Dishwasher Drying FeaturesConvection Dry
Dishwasher OptionsDelay Start 1-9 Hr. with Countdown
Dishwasher OptionsAutomatic Hot Start
Dishwasher OptionsHeated Dry On/Off
Dishwasher OptionsHi-Temp Wash Added Heat
Dishwasher OptionsAutomatic Hi-Temp Rinse with Added Heat
Rack Features4 Plastic Utility Shelves with Stem Safe
Rack FeaturesCleanTipā„¢ Tines
Rack Features2 Fold-Down Tines - Lower
Rack Features2 Fold-Down Tines with 1 Multi-Position - Upper
Rack Features3 Piece Silverware Basket with Cell Covers and Swivel Handle
Racking SystemColor-Matched Racks & Baskets
Upper Rack4-Position Adjustable
Wash Arms3-Direct Feed
Wash ArmsLower
Wash ArmsMiddle
Wash System FeaturesDual Pumps and Motors
Wash System FeaturesAutomatic Temperature Control
Wash System FeaturesDrain Hose

WARRANTY

Warranty NotesSee written warranty for full details
Labor WarrantyLimited lifetime of product tub/door liner
Parts WarrantyLimited lifetime of product tub/door liner
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 5-year racks/electronic control board
Warranty NotesFor models produced on or after January 1, 2006

ECONOMICAL / QUIET

Door InsulationMastic
Quiet Package54 dBA
Outer WrapInsulation Blanket
Motor TypeQuietPowerā„¢ Motor
Quiet FeaturesTub Collar Trim
Door InsulationInsulation
Quiet FeaturesDeluxe Sealed Toe Kick
Quiet FeaturesQuiet Water Valve
Quiet FeaturesQuiet Detergent Cup
Quiet FeaturesActive Vent System

POWER / RATINGS

Calrod Heater Watts875 Max.
Volts/Hertz/Amps120V ; 60 Hz ; 9.1 A

APPEARANCE

Door AppearanceOne-Piece color wrap contour door
InstallationHard Countertop Ready
Door StyleLong Door
Color AppearanceBlack

ACCESSORIES

Requires Kit for 3/4" Panel Capability (Trimless)N/A
Requires Kit for 1/4" Panel Capability (w/Trim)N/A

Dimensions & Weight

Width24 in.
Height34 in.
Length25.25 in.
Weight95 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width29 in.
Shipping Height39 in.
Shipping Length30.25 in.
Shipping Weight135 lbs.
Total of Shipping Weight135 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement11.92 ft³
Dimensional Weight148.23 lbs.
Total of Cubes11.92 ft³
Total of Dimensional Weight148.23 lbs.
